Custom Pre-Painted Aluminum Coil for Roller Shutter Slats and Shutter Boxes

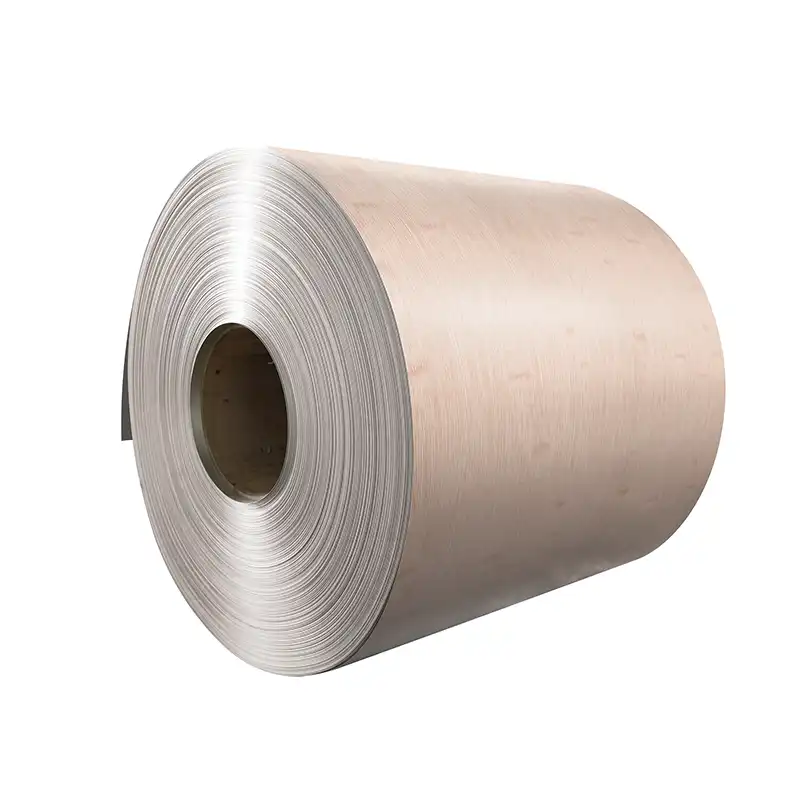

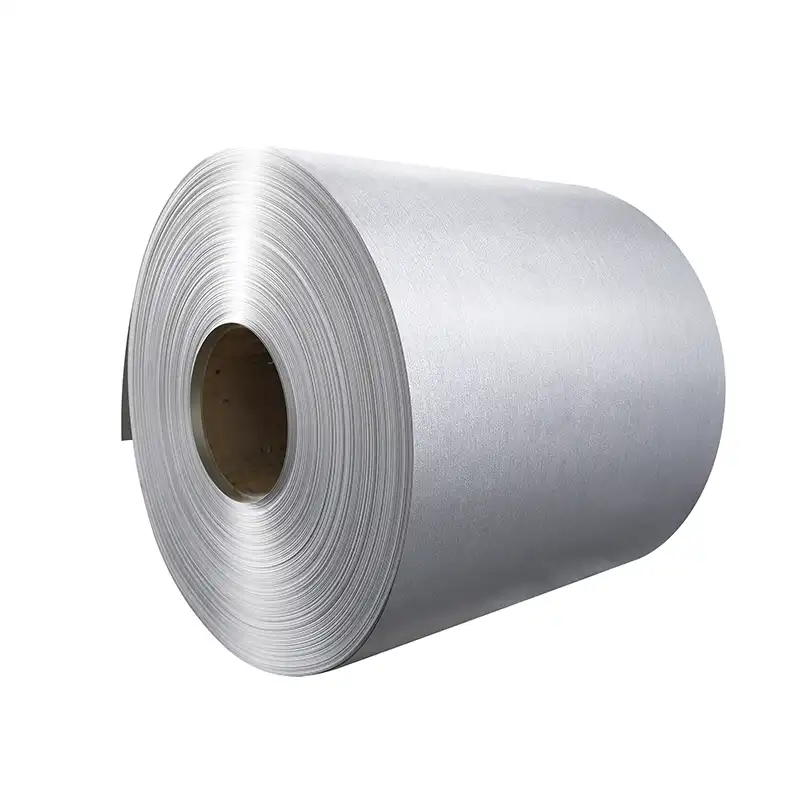

YATAI supplies roller-coated aluminum coil for roller shutter slats and shutter boxes, with alloy options including 3003, 3005, and 3105. Available in PE, matte polyester, and PUPA coating systems, our coils support custom slitting, roll forming, bending, and polyurethane foam filling applications for roller shutter production.
| Specification | Details |
|---|---|
| Product Type | Painted Aluminum Coil for Roller Shutters |
| MOQ | Subject to Order Specifications |
| Alloy | 3003 / 3005 / 3105 |
| Temper | H24 / H26 / H16, Subject to Application Requirements |
| Mother Coil Width | 600–1380 mm |
| Slit Width Range | 50–600 mm |
| Thickness Range | 0.18–1.00 mm |
| Typical Thickness by Application | Slats: 0.18–0.40 mm · Shutter Boxes: 0.80–1.00 mm |
| Coating System | Matte PE / PUPA / Standard PE |
| Front Coating Thickness | Single Coat ≥18 μm · Double Coat ≥25 μm |
| Back Coating | Slats: Epoxy Back Paint, 6–8 μm · Shutter Boxes: 8–20 μm |
| Core Inner Diameter | 505 mm · Customizable to Suit Customer Equipment |
| Formability | 90° Bending, Punching, Roll Forming and Shearing · T-Bend per Order Agreement |
| Coating Adhesion | ≥4A · ASTM D3359 Method B |
| Pencil Hardness | ≥2H · ASTM D3363 |
| MEK Resistance | ≥100 Rubs Without Exposing Substrate · ASTM D5402 |
| Service Temperature | Long-Term: −20°C to +80°C · Short-Term: −40°C to +120°C |
| Applicable Standards | ASTM B209 · GB/T 3880 (Reference) · ASTM D3359 · ASTM D3363 · ASTM D5402 · ASTM D4145 · AAMA 2603 / AAMA 2605-22 (According to Application Requirements) |
Designed for Smooth, Reliable Roller Shutters

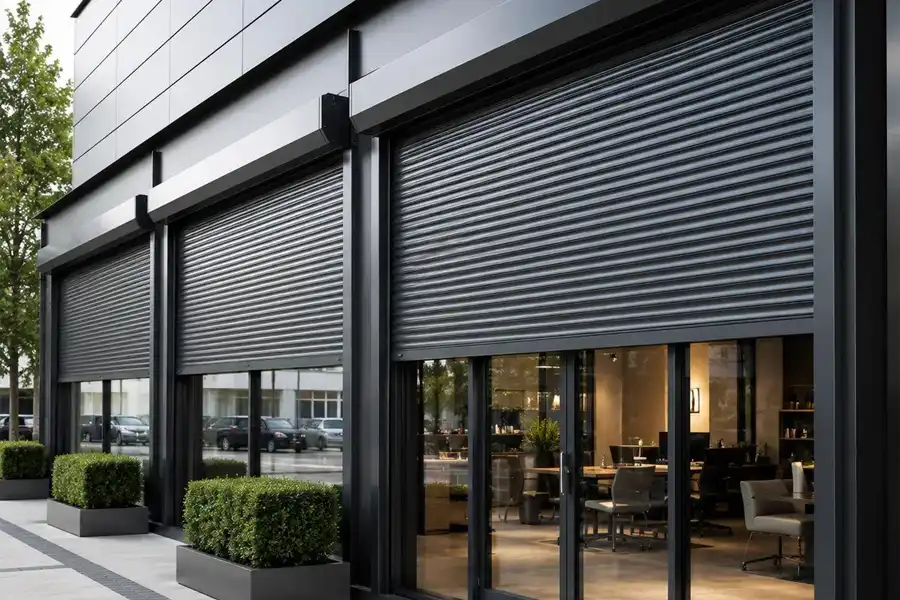

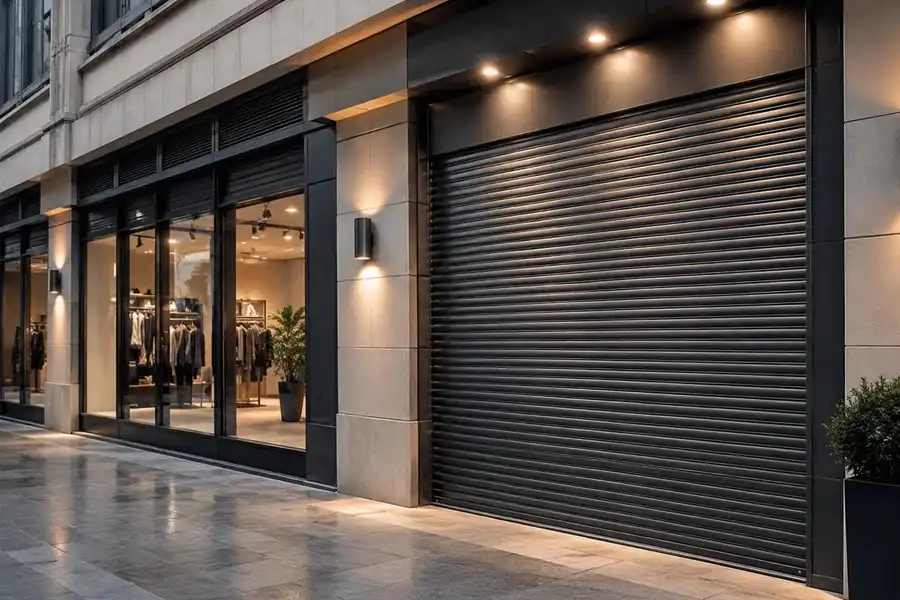

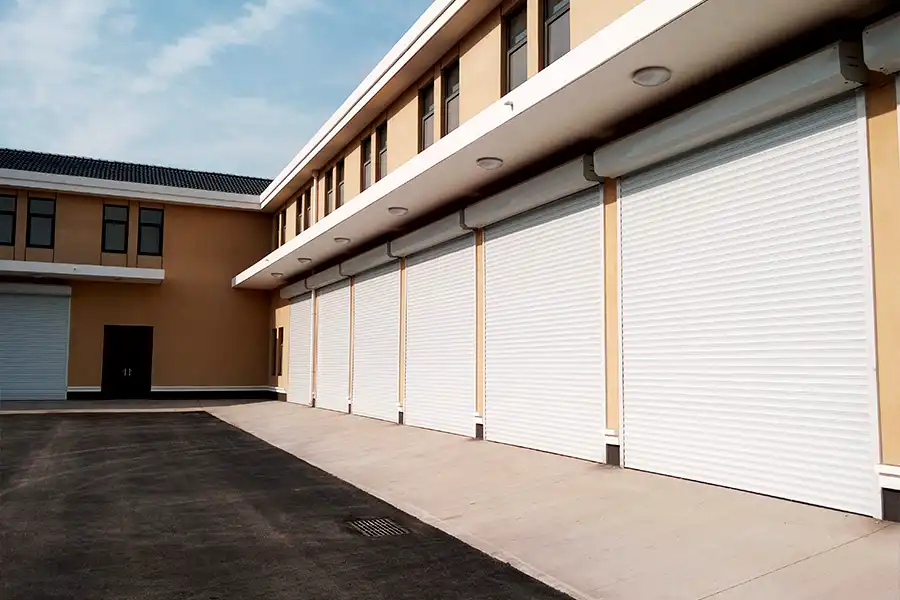

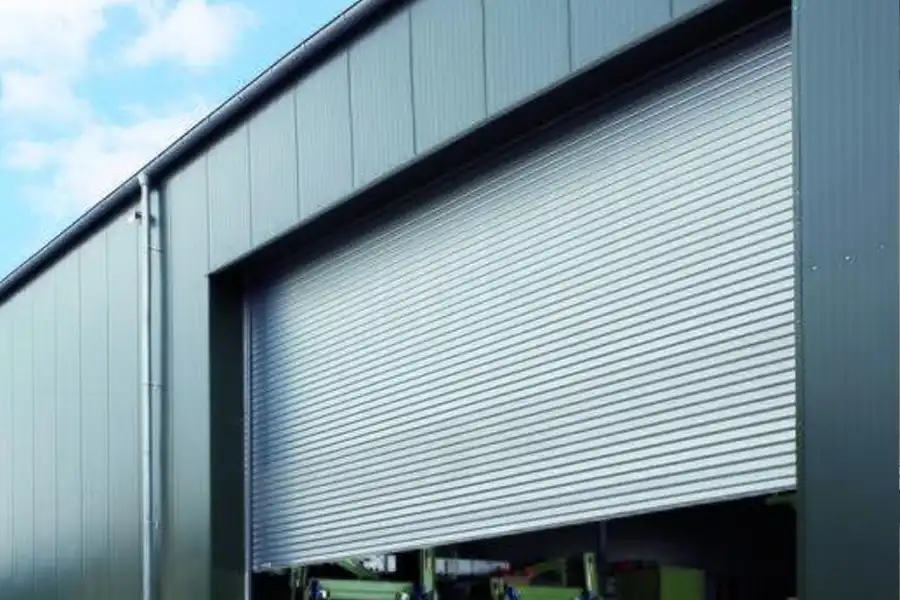

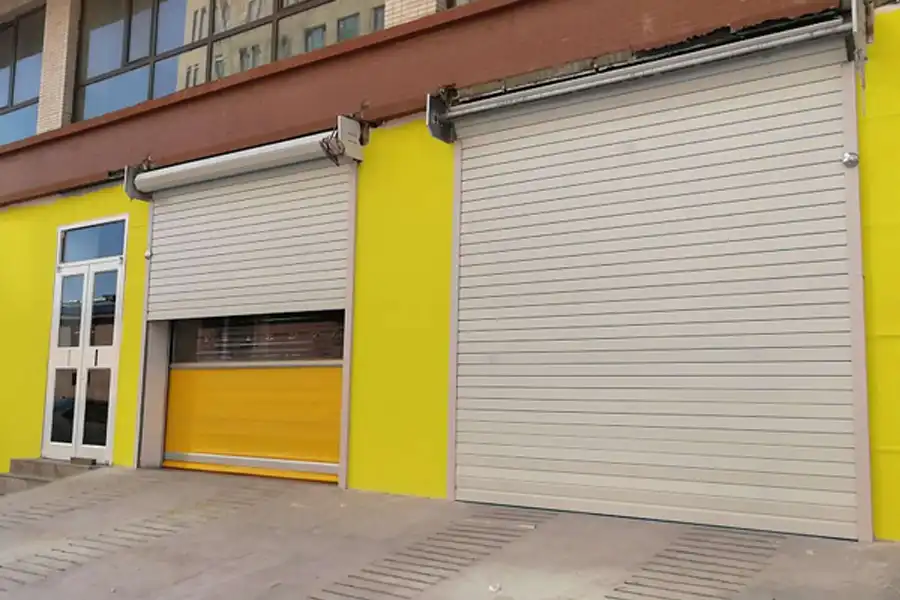

YATAI pre-painted aluminum coil delivers consistent coating quality, reliable formability, and customized colors for roller shutter slats and shutter boxes, supporting durable performance in residential, commercial, and industrial applications.

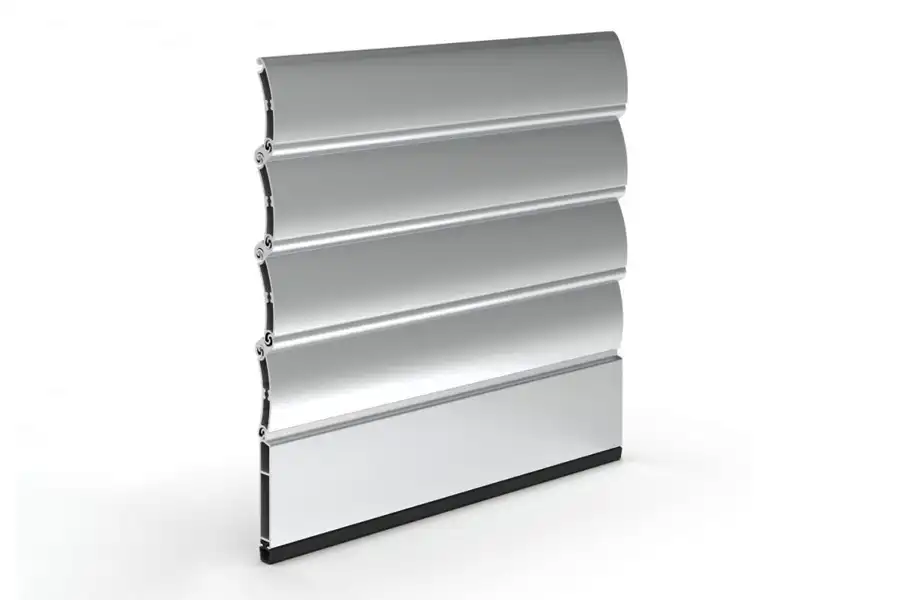

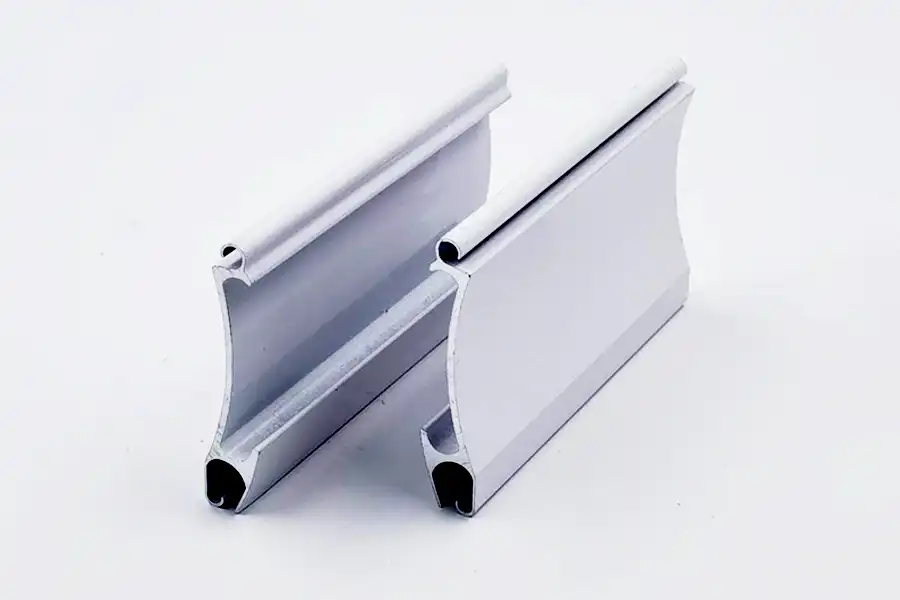

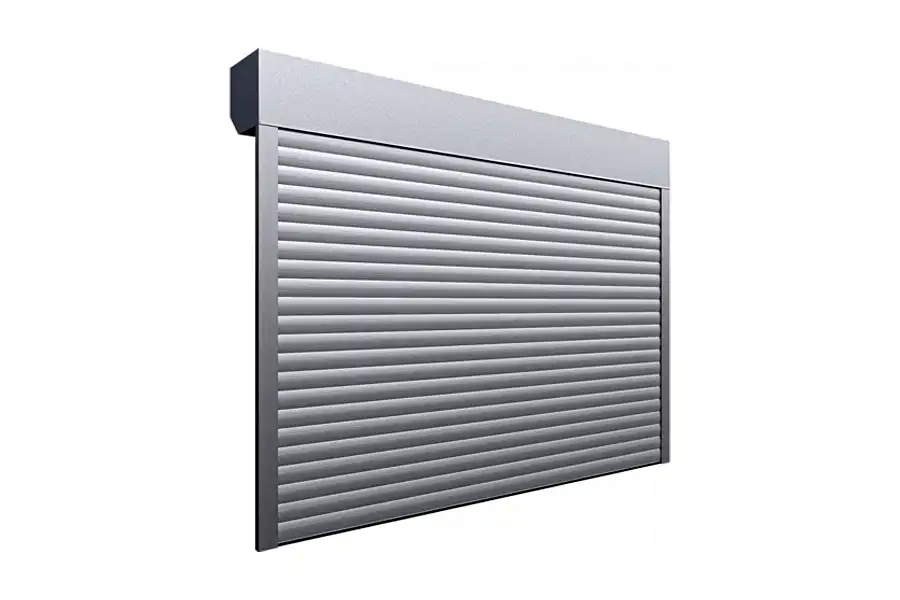

Common Profiles
99% Color Accuracy, Trusted Performance
Backed by a team of experienced color specialists with over 10 years of expertise, we deliver up to 99% color accuracy through advanced color matching technology and strict quality control, ensuring consistent and reliable color performance for every project.
PVDF
PVDF Cream White
FCP-303390
PE
Pure White
PE-38018
PVDF
PVDF Fine Bright Silver
FCM-103199
PVDF
Cream White
FCP-303390
PVDF
Pearl Cream White
FCC-900631
PVDF
Milky White Brushed
FCPD-05357
PE
White Thorn Wood
YT18XD24080111S1
PE
High Gloss Pure White
PE-37969
PE
Bright Silver Grey
PE-HDP699
PVDF
Pearl Milky White
FCP-303518
PE
Rough Golden Oak A
YT18XD24083121S1
PE
High Gloss Pure red
PE-379364
Professional Painted Aluminum Coil Manufacturing Process
With advanced coating lines and strict quality control, YATAI integrates pretreatment, multi-layer roller coating, curing, and inspection processes to manufacture premium painted aluminum coils for roofing, facade, ceiling, and architectural applications.
Why YATAI Holds Up？
Real coils. Real tests. No lab tricks, no retouch.
T Bend Test
Smooth forming without cracks, ensuring flawless performance in demanding applications.
MEK Rub Test
Exceptional coating adhesion keeps the surface strong, durable, and reliable.
Impact Test
Superior impact resistance protects the coating from damage during processing and installation.
Salt Spray Test
Advanced corrosion protection delivers long-lasting performance in harsh environments.
SGS | AAMA 2605 | EN1396
Trusted Quality & Professional Support
Backed by international certifications and extensive industry experience, we provide reliable products and clear solutions for global customers.
We provide a wide range of pre-painted aluminum products for architectural applications, including coated aluminum coils, aluminum panels, aluminum honeycomb panels, and aluminum roofing systems. Our products are widely used in roofing, curtain walls, ceilings, and other building applications.
Yes. We support customized colors, textures, and surface finishes according to project requirements. With extensive color matching experience and thousands of available patterns, we can help customers achieve the desired architectural appearance.
After sample approval, we keep the confirmed color formula and production parameters as the reference standard. Before mass production, we conduct trial matching and continuously compare color, gloss, and coating performance to ensure the final products remain consistent with the approved sample.
We provide different coating systems according to application requirements, including PE, PVDF, FEVE, and other customized coating solutions. Customers can choose suitable coatings based on durability, weather resistance, and project environment.
Our coated aluminum products are widely used in architectural applications, including metal roofing, curtain walls, aluminum panels, ceilings, composite panels, and other building decoration projects.
Yes. We have extensive experience serving overseas customers and understand international standards, export procedures, and project requirements. Our professional team supports communication, documentation, and delivery coordination to ensure smooth cooperation.
Seamless Transition. Proven Performance.
From trial roll validation to full-scale production, YATAI ensures a seamless supplier transition with locked-in color, verified formability, and consistent quality — giving you confidence before every order.
-
1Inquiry
Send specs, color and quantity via the form. We respond within 24 hours.
1-on-1 engineer, not a generic sales auto-reply.
-
2Proposal & Quote MOQ 3 tons
Coating system, lead time and price — no hidden tooling or slitting fees.
Split width 600–2780 mm, one coil — no die change.
-
3Trial Roll Below MOQ
A small roll run on your own line before the full order — at a nominal charge, far less than a full run.
Saves your testing cost, confirms formability on site.
-
4Color Lock
Sealed sample becomes the benchmark — ΔE ≤ 1.0, rechecked against your master coil.
PVDF 70% Kynar, 30-year warranty on request.
-
5Bulk Production Lead Time From 10 Days
Runs on the same line, to the same formula. Mill test report with every shipment.
Formula archived — reorder any time, no resampling.
Trial Roll
Fill the Form to Start →
Test Before You Commit
Not ready for a full run? Validate color match and formability on your own line first. Your formula is archived for the real order.
Below MOQSmall test run
φ405–605Fits your mandrel
ΔE≤1.0Color locked
